FAT BOB®
SHAKE UP THE STATUS QUO
Starting at $27,750AUD / $28,995NZD
*Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact our Call Centre on 1800 464258 AU / 0800464258 NZ for details. All comparisons made are between original equipment 2018 and 2019 models.

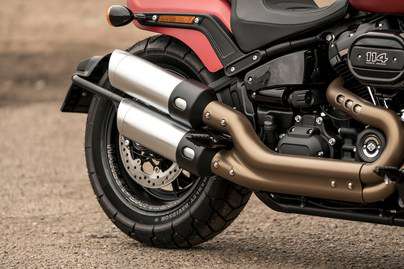

2-1-2 Exhaust
Big performance-inspired, upswept exhaust with a custom contrast finish.
Cast Wheels with Fat Tyres
Bold aluminium wheels with fat, aggressive tyres that give you asphalt-eating traction.
Dual Disc Front Brakes
The Milwaukee-Eight® engine is not short on power. And these high-performance dual disc brakes help you keep that power in check when you need to.
RACE-STYLE FORK TECHNOLOGY
Inverted race-style front fork design, with single-cartridge technology that improves response to steering input and braking and handling performance.
Inverted Forks
Inverted front forks deliver precise handling.
LED Lighting
A bold headlight design that gives you great visibility at night and during the day makes sure all eyes are focused on you.
Milwaukee-Eight® Big Twin Engine
A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. Available in 107 and 114 engine displacements.
Engine
- Engine 2 Milwaukee-Eight® 107
- Bore 100 mm
- Stroke 111 mm
- Displacement 1,745 cc
- Compression Ratio 10.0:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-1-into-2 dual side; catalyst in header
Dimensions
- Length 2,340 mm
- Seat Height, Unladen 710 mm
- Ground Clearance 120 mm
- Rake (steering head) (deg) 28
- Trail 132 mm
- Wheelbase 1,615 mm
- Tyres, Front Specification 150/80-16,71H,BW
- Tyres, Rear Specification 180/70B16,77H,BW
- Fuel Capacity 13.6 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 296 kg
- Weight, In Running Order 306 kg
Performance
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 145 Nm
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 31
- Lean Angle, Left (deg.) 32
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
Chassis
- Wheels, Front Type Denim black, Structure cast aluminium with laser etched graphics
- Wheels, Rear Type 7 Denim black, Structure cast aluminium with laser etched graphics
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Electric
- Lights (as per country regulation), Indicator Lamps 6 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 4 inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
Engine
- Engine 2 Milwaukee-Eight® 114
- Bore 102 mm
- Stroke 114 mm
- Displacement 1,868 cc
- Compression Ratio 10.5:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-1-into-2 dual side; catalyst in header
Dimensions
- Length 2,340 mm
- Seat Height, Unladen 710 mm
- Ground Clearance 120 mm
- Rake (steering head) (deg) 28
- Trail 132 mm
- Wheelbase 1,615 mm
- Tyres, Front Specification 150/80-16,71H,BW
- Tyres, Rear Specification 180/70B16,77H,BW
- Fuel Capacity 13.6 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 296 kg
- Weight, In Running Order 306 kg
Performance
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 155 Nm
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 31
- Lean Angle, Left (deg.) 32
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
Chassis
- Wheels, Front Type Denim black, Structure cast aluminium with laser etched graphics
- Wheels, Rear Type 7 Denim black, Structure cast aluminium with laser etched graphics
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Electric
- Lights (as per country regulation), Indicator Lamps 6 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 4 inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2018 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria.
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.
2019 FAT BOB
Colours
Available Colours
-
Vivid Black
-
Black Denim
-
Wicked Red Denim
-
Bonneville Salt Denim
-
Rawhide Denim
-
Scorched Orange/Black Denim
