SHAKE UP THE STATUS QUO
The Fat Bob® motorcycle features aggressive, unapologetic styling, mind-blowing performance and handling, premium finishes, and the massive torque of the Milwaukee-Eight® engine.Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models.

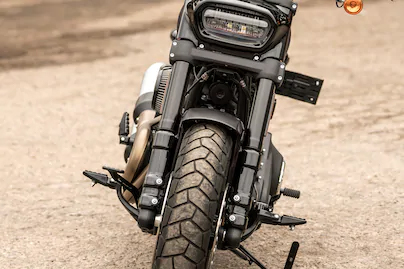

Inverted Forks
Inverted front forks deliver precise handling.

Dual Disc Front Brakes
The Milwaukee-Eight® engine is not short on power. And these high-performance dual disc brakes help you keep that power in check when you need to.

2-1-2 Exhaust
Big performance-inspired, upswept exhaust with a custom contrast finish.

Cast Wheels with Fat Tyres
Bold aluminium wheels with fat, aggressive tyres that give you asphalt-eating traction.

Milwaukee-Eight 114® Big Twin Engine
A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. Available in 107 and 114 engine displacements.

Led Lighting
A bold headlight design that gives you great visibility at night and during the day makes sure all eyes are focused on you.

RACE-STYLE FORK TECHNOLOGY
Inverted race-style front fork design, with single-cartridge technology that improves response to steering input and braking and handling performance.

Softail® Frame
The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you've felt before.
Engine
- Engine 2 Milwaukee-Eight® 107
- Bore 100 mm
- Stroke 111 mm
- Displacement 1,746 cc
- Compression Ratio 10.0:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-1-into-2 dual side; catalyst in header
Dimensions
- Length 2,340 mm
- Seat Height, Unladen 710 mm
- Ground Clearance 120 mm
- Rake (steering head) (deg) 28
- Trail 132 mm
- Wheelbase 1,615 mm
- Tyres, Front Specification 150/80-16,71H,BW
- Tyres, Rear Specification 180/70B16,77H,BW
- Fuel Capacity 13.6 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 296 kg
- Weight, In Running Order 306 kg
Performance
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 145 Nm
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 31
- Lean Angle, Left (deg.) 32
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
Chassis
- Wheels, Front Type Denim black, Structure cast aluminium with laser etched graphics
- Wheels, Rear Type 7 Denim black, Structure cast aluminium with laser etched graphics
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Electric
- Lights (as per country regulation), Indicator Lamps 6 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 4 inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
Engine
- Engine 2 Milwaukee-Eight® 114
- Bore 102 mm
- Stroke 114 mm
- Displacement 1,868 cc
- Compression Ratio 10.5:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-1-into-2 dual side; catalyst in header
Dimensions
- Length 2,340 mm
- Seat Height, Unladen 710 mm
- Ground Clearance 120 mm
- Rake (steering head) (deg) 28
- Trail 132 mm
- Wheelbase 1,615 mm
- Tyres, Front Specification 150/80-16,71H,BW
- Tyres, Rear Specification 180/70B16,77H,BW
- Fuel Capacity 13.6 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 296 kg
- Weight, In Running Order 306 kg
Performance
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 155 Nm
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 31
- Lean Angle, Left (deg.) 32
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
Chassis
- Wheels, Front Type Denim black, Structure cast aluminium with laser etched graphics
- Wheels, Rear Type 7 Denim black, Structure cast aluminium with laser etched graphics
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Electric
- Lights (as per country regulation), Indicator Lamps 6 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 4 inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
- Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
- Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- Standard and optional wheels may vary by country and region.
- Riding range estimates provided following the WMTC 134/2014 Annex VII Appendix 3.3 are based on expected performance of a fully-charged battery when operated under specific conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions. Range as shown is with maximum power and minimum regeneration selected.
2020 Harley Davidson Softail Fat Bob
Colours
Available Colours
-
Barracuda Silver Denim
-
Black Denim
-
Performance Orange
-
River Rock Gray Denim
-
Stiletto Red
-
Vivid Black
